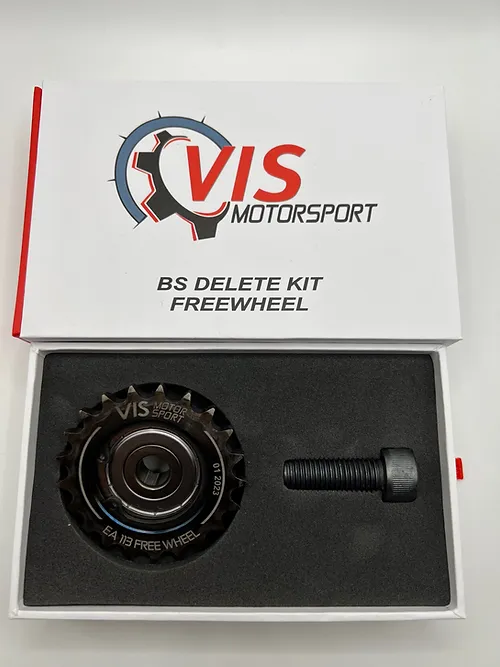

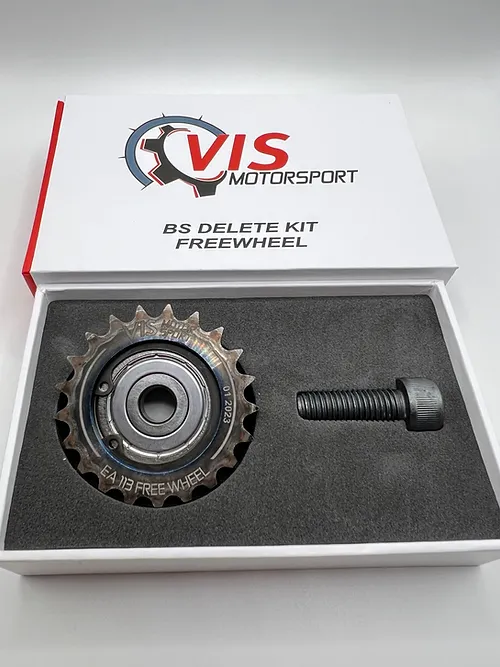

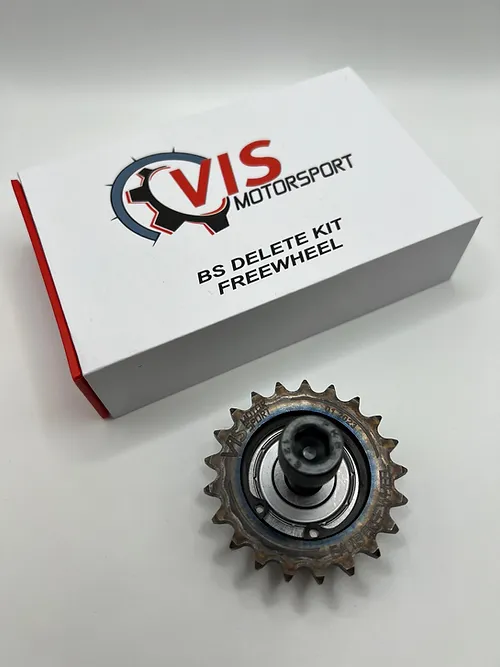

VIS 2.0 TFSi EA113 BSD FREEWHEEL KIT

Free up excessive engine rotational drag by removing the balance shaft assembly from your EA113 engine with the VIS BS DELETE KIT FREEWHEEL. The heavy balance shaft assembly (An ASTOUNDING 19 POUNDS!!!) can be easily removed allowing your engine to respond faster.

This will work on all EA113 2.0 TFSI engines

There are no adverse effects caused by removing the balance shafts. Adds REAL horsepower and allows engine to rev FASTER!!! Install can be completed with basic hand tools in about 30 MIN

Removing the rotating mass of the OE balance shaft frees up a few extra horsepower but more importantly, makes your engine rev FASTER. You also gain extra oil capacity and oil starvation prevention to keep your engine healthy longer and want quicker RPM gain, look no further than the VIS BS DELETE KIT FREEWHEEL

​

Bearing is a HQ STAINLESS STEEL SHIELDED Deep Groove Radial Ball Bearing with BIGGEST size that can be fitted,only SKF or TIMKEN brands used

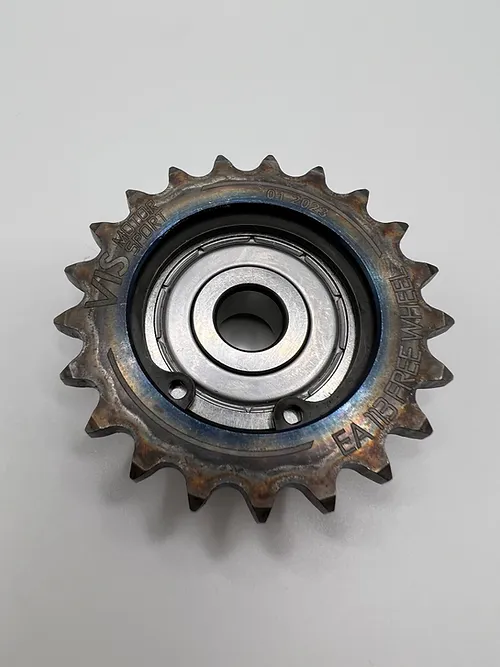

Our sproket has the bearing press fit and a c clip in each side (2total) to ensure will stay in place in the event of failure and also keep in place by a harder bolt 12.9

The bearings we use have 10.000 hours warranty with no grease service and 100.000 working hours  ,submerged in oil at 100 degree celsius and 8000rpm!(bearing rated at 50k rpm)

The Volkswagen/Audi 2.0T FSI engine has a weak point: Its counter-rotating balance shafts wear out prematurely. If your friends went through this, you already know the shafts are stupid expensive to repair, up to $1,800.

 This is an alternative to cut the cost of eventual shaft and oil pump replacement if bs seize
kit eliminates the problem

What is an oil pump? Quite simply, it’s the single most important mechanical component in making sure every crucial moving part of your engine is properly lubricated, no matter how hard you drive. Getting oil to your engine’s moving parts reduces friction to an all-but-harmless level. There’s always some friction, which is why engines wear out – eventually. But without proper oil flow from a quality oil pump, your engine is toast before you know it – very expensive toast.

It is important to check the original crankshaft gear

replace the weaker OEM VAG part number 06F105243C on the TFSi Engine.

Balance Shaft Removal
1. Introduction
Balance shafts are commonly found in inline four cylinder engines such as the EA113 which, due to the asymmetry of their design, have an inherent second order vibration (vibrating at twice the engine RPM) which, contrary to popular belief, cannot be eliminated no matter how well the internal components are balanced. This vibration is generated because the movement of the connecting rods in an inline engine is not symmetrical throughout the crankshaft rotation; thus during a given period of crankshaft rotation, the descending and ascending pistons are not always completely opposed in their acceleration, giving rise to a net vertical inertial force twice in each revolution whose intensity increases quadratically with RPM, no matter how closely the components are matched for weight.

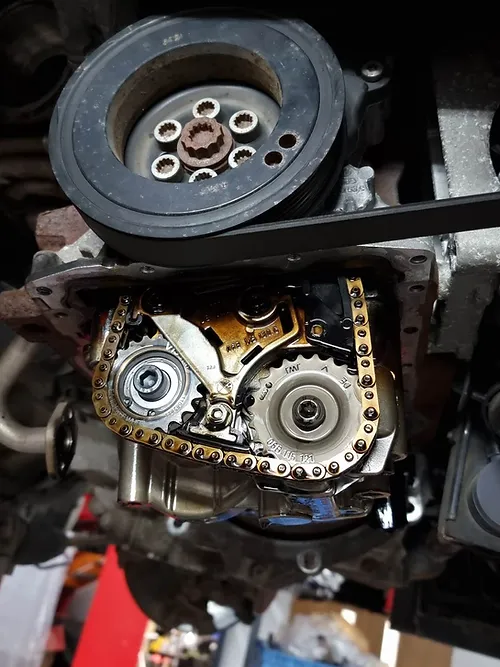

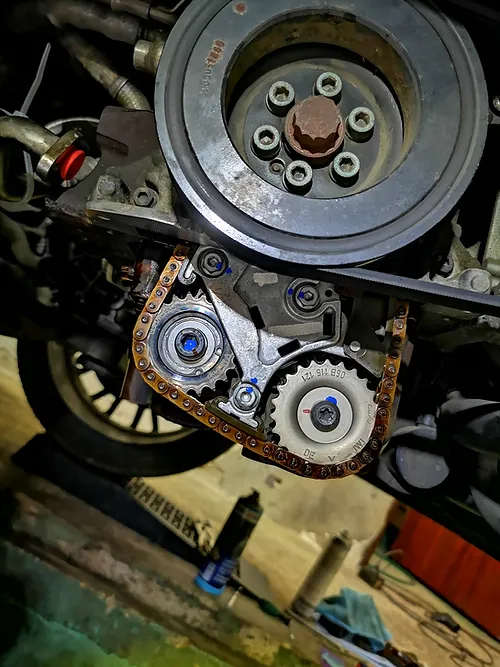

The EA113 found in are equipped with 2 balance shafts. The left balance shaft that’s directly connected to the oil pump driven gear and the right balance shaft that’s driven by the balance shaft gear over the oil pump sprocket. Two balance shafts rotate in opposite directions at twice engine speed. Equally sized eccentric weights on these shafts are sized and phased so that the inertial reaction to their counter-rotation cancels out in the horizontal plane, but adds in the vertical plane, giving a net force equal to but 180 degrees out of phase with the undesired second-order vibration of the basic engine, thereby canceling it. The basic problem presented by the concept is adequately supporting and lubricating a part rotating at twice engine speed at the higher RPMs where the second order vibration becomes unacceptable.

So why do it? The main reason for balance shaft elimination should be reliability as power gains are minimal. As you can see it inherits a potent lubrication problem and unlike the name suggests it’s job isn’t to balance but merely masks off the vibrations. Silent shaft is a more appropriate term but not used as commonly. Although the chances are slim, it’s still one less part that can fail.

The Good
⦁ More HP to the wheels

Can be used to prevent or repair damage

Completly reversible to stock and need to cut any gears to install

No need to remove oil pump to install PLUG AND PLAY
⦁ Zero chance the balance shaft will fail and kill the timing chain/belt
⦁ Zero chance the balance shaft bearings will fail and damage the rest of the motor
⦁ More oil pressure to the rest of the motor
