COOL BOX.
DSG GEARBOX OIL COOLER.
It’s not just your engine oil that you need to protect. Your DSG gearbox is susceptible to overheating. And the higher your power, the harder you drive, the more important it is to protect it.
WHY FIT A DSG OIL
COOLER KIT?
Under hard driving, the factory DSG oil/water cooler is easily overwhelmed. Problems start to occur when oil cannot dissipate its collected heat fast enough and the oil begins to thin and degrade – losing its lubrication properties.
When this happens, the DSG will protect itself and begin to lower the torque, increase shift times and in extreme circumstances even loose gear selection.
The RacingLine kit solves this problem: by adding in an additional air/oil cooler positioned right in the airflow at the front of the car, oil temperatures are reduced by around 15 – 20 degrees centigrade (of course dependant on how the car is being used, ambient temps and state of tune).
The kit uses a clever design which retains the factory oil/water cooling and adds to it with the thermostatically-controlled front-mounted cooler – doubling up your cooling capability when it’s needed with less heat transfer into the water system.
Only when the oil exceeds normal temperatures, the thermostat opens. Oil temperature then drops significantly as it is pumped through the densely packed fins of the 10-row cooler’s large surface area mounted right in the cool airflow.
Our unique DSG Oil Cooler Kit is an essential fit for any hard-driven MQB 2.0 TSI car running high power levels or in hot climates. It’s a complete ready to install package, using a clever sandwich plate design for straightforward and completely reliable installation.
Transferring more power and torque through the DSG gearbox generates ever more heat to dissipate. Significantly increased oil temperatures means only one thing: a decrease in the ability for your DSG box to stay properly cooled, eventually causing power drop and gear selection issues.
HIGH EFFICIENCY COOLER
Our 10-row stacked plate design efficiently forces the hot oil through a series of aluminium pressed plates. Heat dissipates as cold air moves across the plates.
210 SERIES BRAIDED HOSE
Our oil lines feature an attractive outer nylon braid strengthened by a stainless steel inner weave for maximum resilience. Protective external sheath avoids any rubbing damage in use.
TEMPERATURE CONTROL

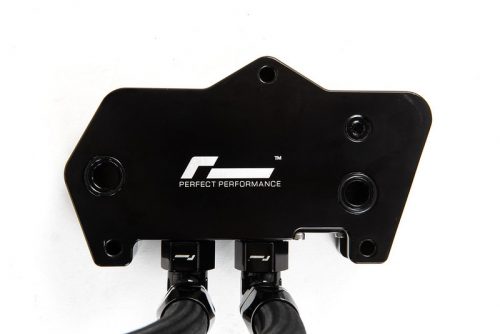

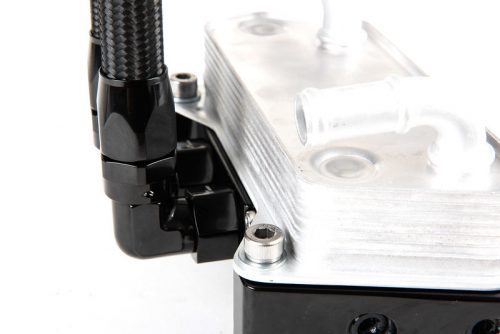

Our unique adaptor block oil take-off includes a clever internal thermostatic-control valve to direct oil flow through the cooler only when temperature hits 82°c/180°F.
COLD AIR LOCATION
The front-mount location brackets of the RacingLine cooler kit places it in the optimum airflow and ensures that oil temperature drops and excess heat is funnelled out efficiently.
PRECISION MACHINED
Precision machined billet components utilising
the latest 5 Axis CNC machines for perfect accuracy, first time, every time.
LOW PROFILE COOLER

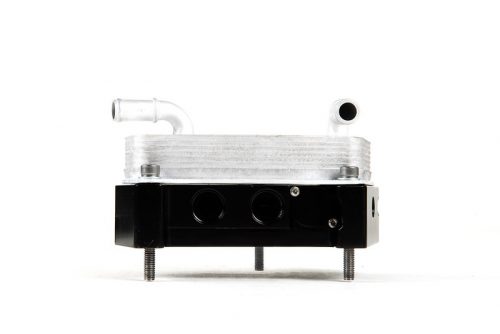

The kit includes a replacement factory-spec oil/water cooler with a lower height, allowing for easy fitment without affecting the battery tray above it.
DSG COOLER
FITMENT.

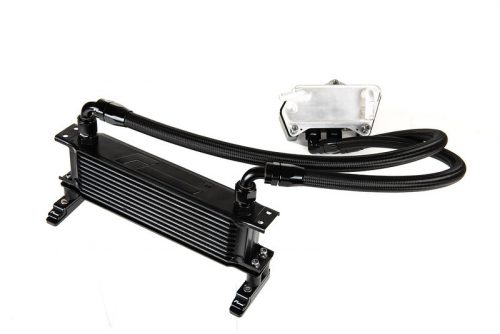

As you’d expect, the RacingLine DSG Oil Cooler is a beautifully detailed complete kit, developed exclusively for the DQ250 6-speed DSG gearbox.
The system is designed for straightforward fitting and ultimate reliability. Everything needed for perfect fitment is included.
Unlike other DSG oil cooler kits, the RacingLine package keeps the oil/water cooler and adds to it with the oil/air cooler

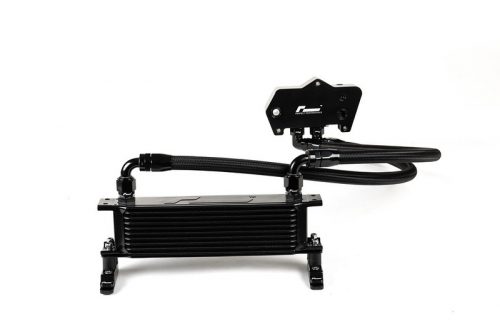

10 row stacked-plate oil cooler radiator, flowed to obtain maximum heat dissipation without undue pressure drop

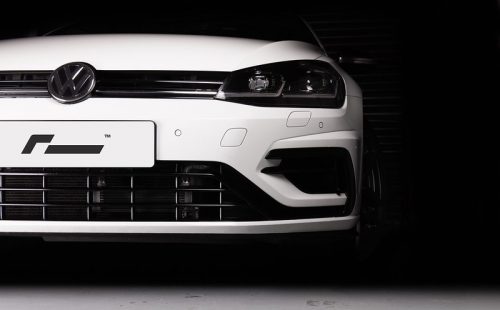

Optimum front mounted location behind left side front lower grill aperture with all necessary brackets and fixing kit supplied

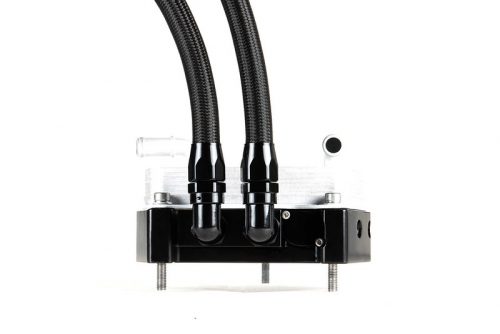

210 Series stainless steel, nylon braided feed and return lines run past the chassis leg into the bumper cavity, then connecting to the oil cooler core.
DOUBLE COOLING.
Our DSG Cooler design is a unique design: it retains the factory oil/water cooling system, plus adds our oil/air cooling as well. Why?
The DSG oil will still quickly warm up from the hot water in the engine’s coolant system, reaching full operating temperature as soon as possible.
But that’s where the problem begins on a hard-driven car. The hot engine coolant will now have little to no cooling effect on the DSG oil, and gearbox temps start to rise rapidly.
That’s the point at which our sophisticated thermostatic control valve inside the adaptor block will then divert hot oil out to the new 10-row cooler located in the cool fresh air flow whenever temperatures rise.
After the cooled transmission oil returns from the cooler, it carries less heat to be absorbed into the engine coolant system – helping control all the temperatures under the bonnet.

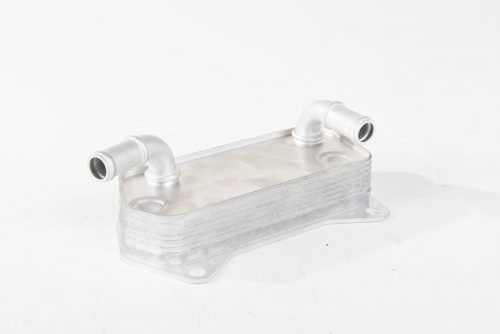

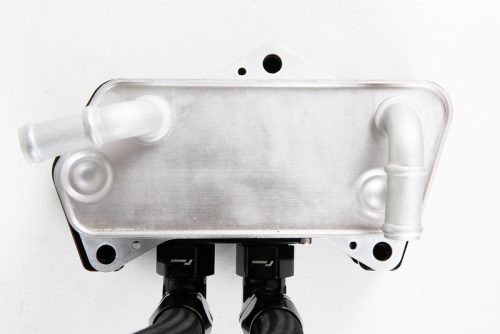

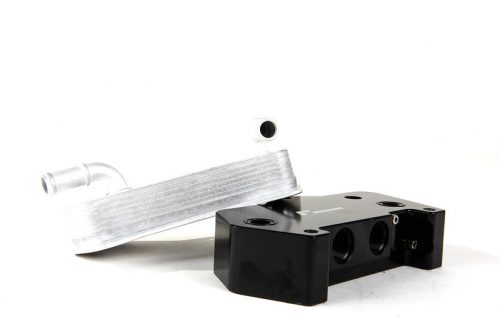

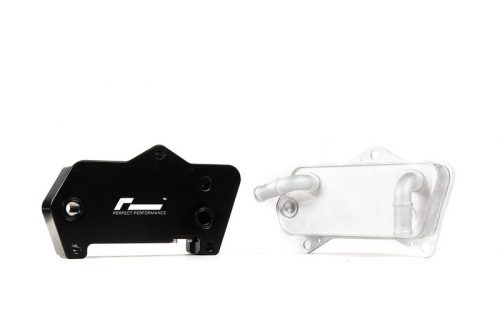

Our replacement oil/water cooler (that’s the silver part) is lower in height than the factory one. So the total height of both parts fits perfectly under the battery location above it.
CONFIRMED APPLICATIONS
DQ250 6-SPEED GEARBOXES ONLY
NOT APPLICABLE FOR DQ380 & DQ381 7-SPEED GEARBOX – CURRENTLY IN DEVELOPMENT
VW Golf 7 R 2013-16 5G 6-speed
VW Golf 7 GTI ClubSport 2016 5G 6-speed
VW Passat 2.0 TSI B8 2015+ 3G 6-speed
VW Arteon 2.0 TSI 2017+ 6-speed
Audi TT 2.0 TSI III 2014+ 8S 6-speed
Audi TTS III 2015+ 8S 6-speed
